Diamond Lattice
Description
Framing = 30mm x 30mm
Framing = 45mm x 45mm for DT13 / DT14
Lattice Width after Planing = 20mm – Rounded Corners
Lattice Gaps from Inside Edges = 40mm
All lattice measurements shown in shoulder heights x width – Add /subtract 11cm for top of Arch Measurement, except DT14 + 20cm

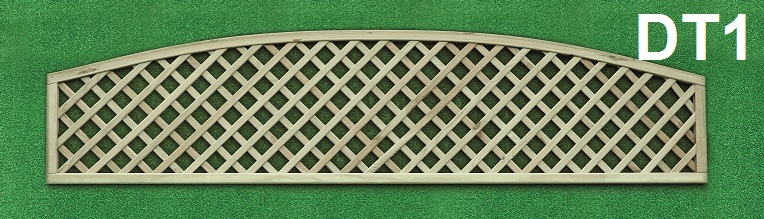

- DT1 Convex 30cm x 183cm

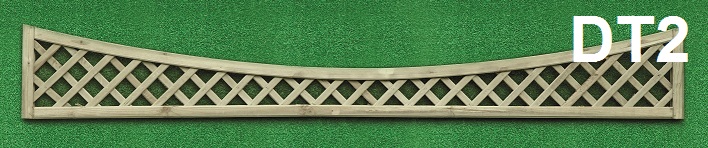

- DT2 Concave 27cm x 183cm

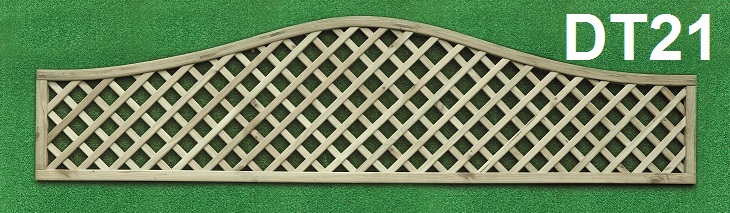

- DT21 Omega 30cm x 183cm

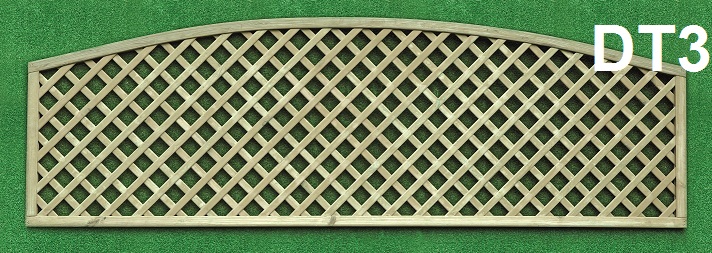

- DT3 Convex 45cm x 183cm

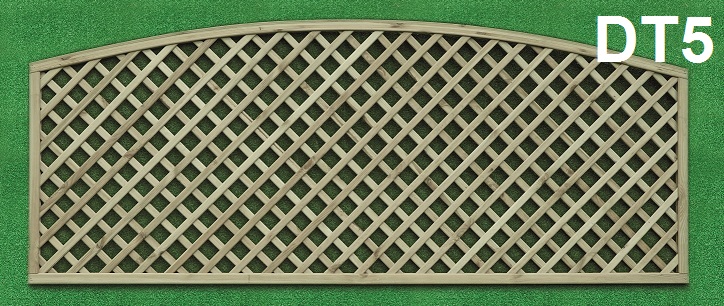

- DT5 Convex 60cm x 183cm

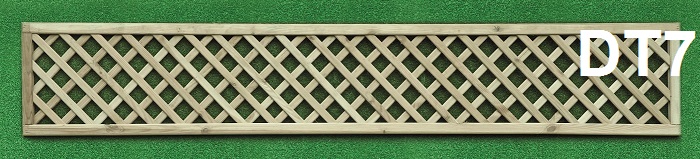

- DT7 Rectangle 30cm x 183cm

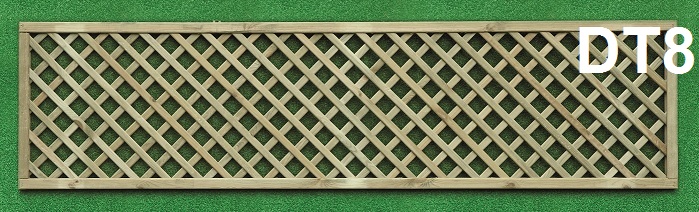

- DT8 Rectangle 45cm x 183cm

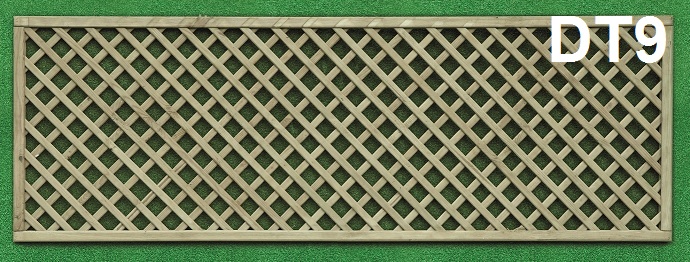

- DT9 Rectangle 60cm x 183cm

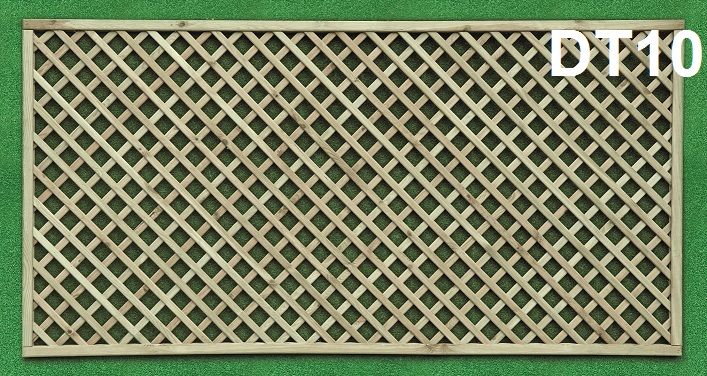

- DT10 Rectangle 90cm x 183cm

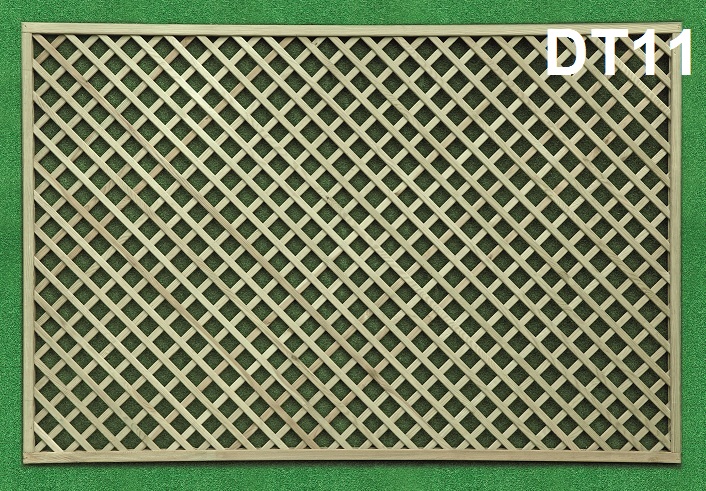

- DT11 Rectangle 120cm x 183cm

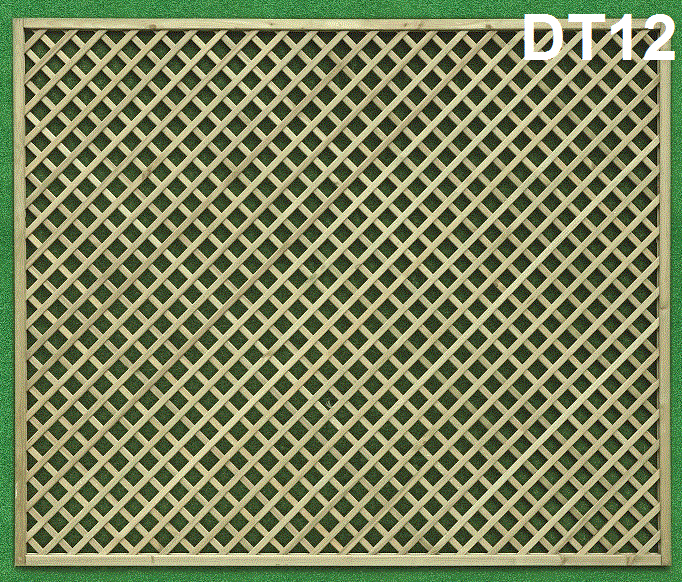

- DT12 Rectangle 150cm x 183cm
- DT13 Rectangle 180cm x 183cm

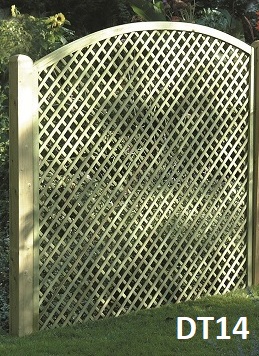

- DT14 Convex 160cm x 183cm

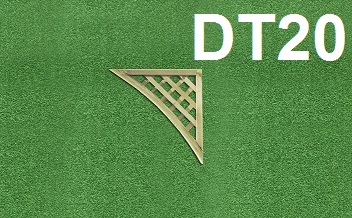

- DT20 Corner 45cm x 45cm
